Conductor: CU, CCA, TC, ect.
Structure: According to customer’s requirement.

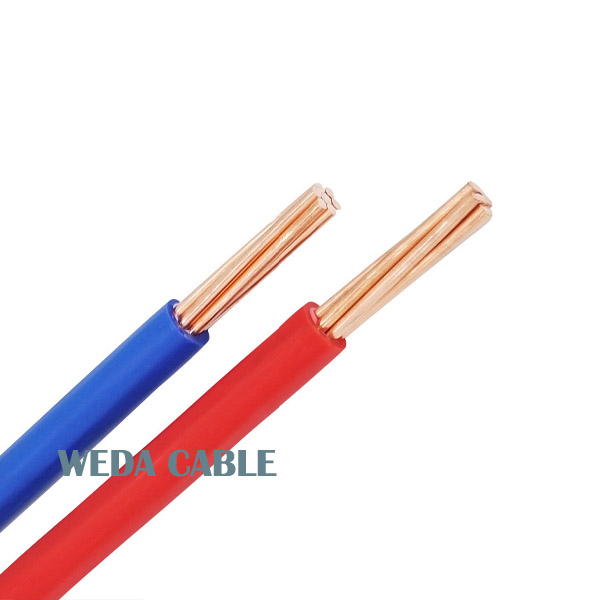

FLEXIBLE SINGLE CORE PVC INSULATED ELECTRIC CABLES, SHEATHLESS, FOR INTERNAL WIRING AND FOR GENERAL USE
Rated voltage: 450/750V
Applications:
H05V-K: Inside visible or embedded conduits, or for similar inhouse networks. Not suitable for direct or indirect burial; Outdoors or in wet environments; Laying below plaster, unprotected.
Conductor:
Flexible plain annealed copper wires class 5 to IEC EN 60228.
Insulation:
Polyvinylchloride type TI1.
Marking:
Continuous marking on the sheath
Operating temperature:
+5ºC÷ +70ºC on the conductor
Max. Temperature in case of short circuit:
(Max duration 5 seconds)
160ºC on the conductor
140ºC on the conductor for size >300 mm
Min. Bending radius:
For fixed installation, recommended 4 times the outer diameter of the cable.
Maximum tension during installation:
50 N/mm of total copper cross section.
|
Model No. |
Size |
Area Section |
Strands No. |
PVC thickness |
|
HS-A02 |
16AWG |
1.32mm2 |
7/0.49mm |
0.8mm |
|
HS-B02 |
14AWG |
1.98mm2 |
7/0.6mm |
0.9mm |
|
HS-C03 |
12AWG |
3.26mm2 |
7/0.77mm |
1mm |
|
HS-D03 |
8AWG |
8.31mm2 |
7/1.23mm |
1.5mm |

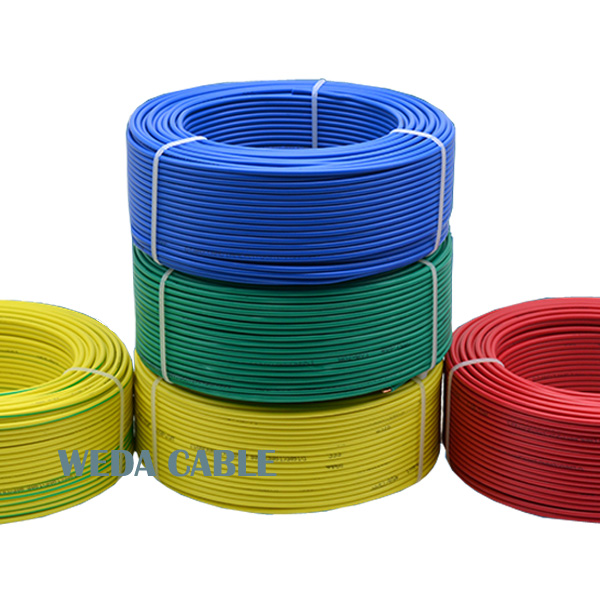

Package
Coil, Reel[:zh]Conductor: CU, CCA, TC, ect.
