Product Description

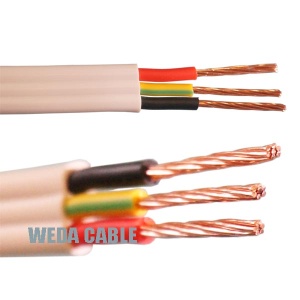

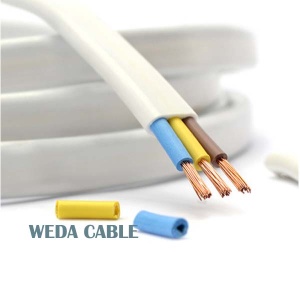

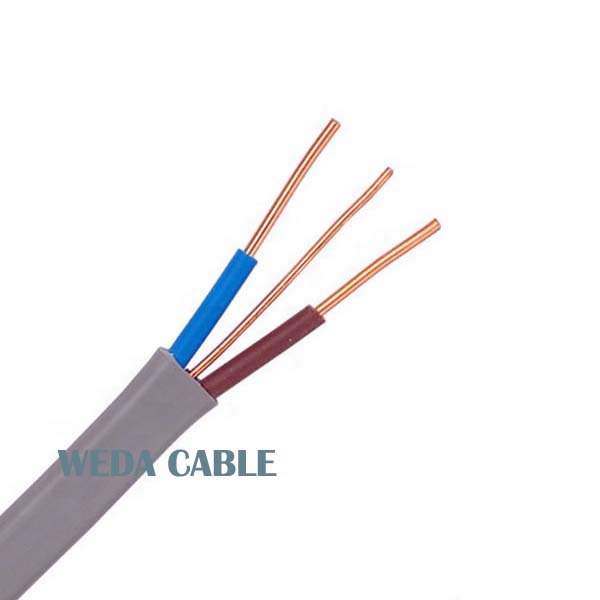

Flat twin and earth wire:
1). STANDARD: BS6004, 227IEC, AS/NZ5000.2
2). APPLICATION: Suitable for surface wiring, indoor or outdoor
3). SPECIFICATION: Solid or stranded copper conductor, PVC insulated and PVC sheathed wire. (two cores or three cores)
4). VOLTAGE: 300/500V, 450/750V
Flat cable based on standard IEC
| No. core | Normal area
mm2 |
Conductor structure
mm |
Aver. Thickness of insulation mm | Aver. Thickness of sheath
mm |
Approx. overall diameter mm |
| 2 cores | 1.0 | 1*1.13 | 0.60 | 0.90 | 4.1*6.5 |
| 1.5 | 1*1.38 | 0.70 | 0.90 | 4.6*7.4 | |
| 2.5 | 1*1.78 | 0.80 | 1.00 | 5.4*8.8 | |
| 4.0 | 7*0.83 | 0.80 | 1.00 | 6.1*10.2 | |
| 1*2.25 | 0.80 | 1.00 | 5.9*9.7 | ||
| 3 cores | 1.0 | 1*1.13 | 0.60 | 0.90 | 4.1*8.8 |
| 1.5 | 1*1.38 | 0.70 | 0.90 | 4.6*10.1 | |
| 2.5 | 1*1.78 | 0.80 | 1.00 | 5.4*12.1 | |
| 4.0 | 7*0.83 | 00.80 | 1.10 | 6.3*14.5 | |
| 1*2.25 | 0.80 | 1.10 | 6.1*13.8 |
